Current Blockage Example 02. Blockage factor according to API. Tylor Common.

The current blockage factor for every element is computed according to API, (Taylor's formula). A common (averaged) blockage factor is computed. In the actual example, the computed average value is 0.87, and in Figure 1, the factors are visualized in the graphical user interface.

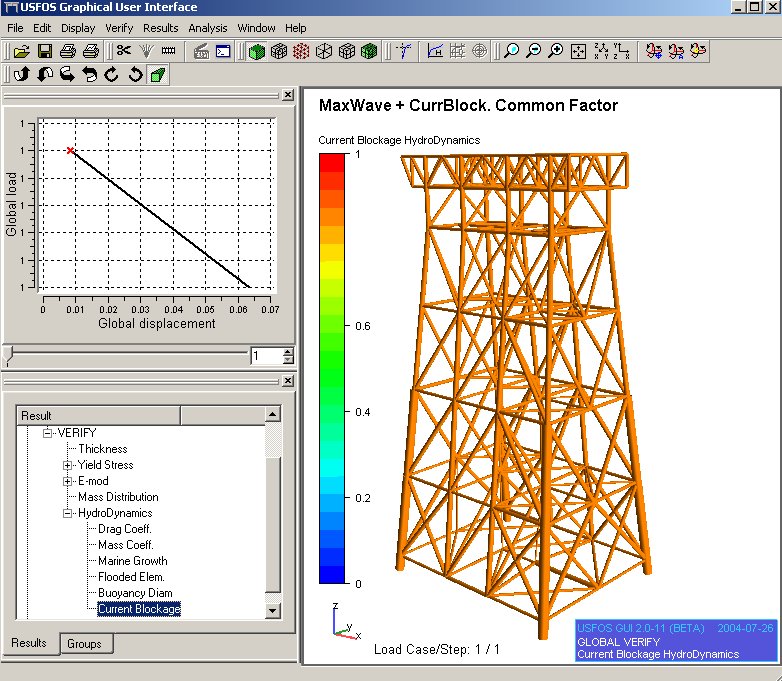

Figure 1 : Verification of Computed Current Blockage Factor

Usfos input files to the actual example are given:

=> Usfos Control File
=> Model File
